MCCB 4P 25kA Adj. 200A CVS250B

84,000.00

Buy Now Compare
Availability: In Stock
SKU:N/A

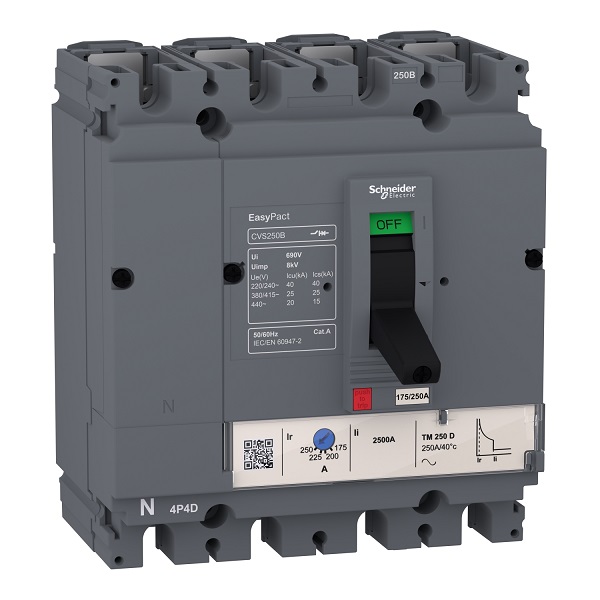

EasyPact CVS250B is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 200A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS250B is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
User Manual

Schneider Electric_EasyPact-CVS_LV525312

Schneider Electric_EasyPact-CVS_LV525313

Amps

200A, 250A

×
